DaVinci Resolve Mini Panel

Description

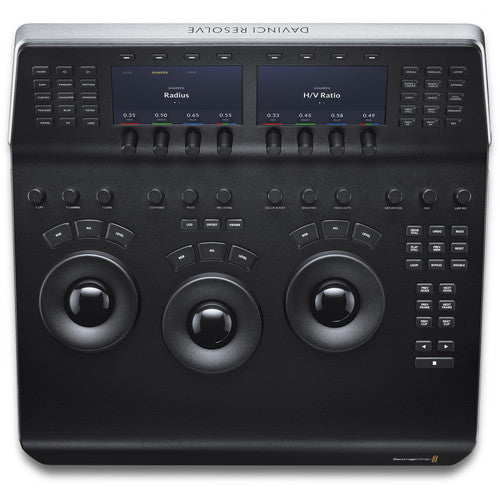

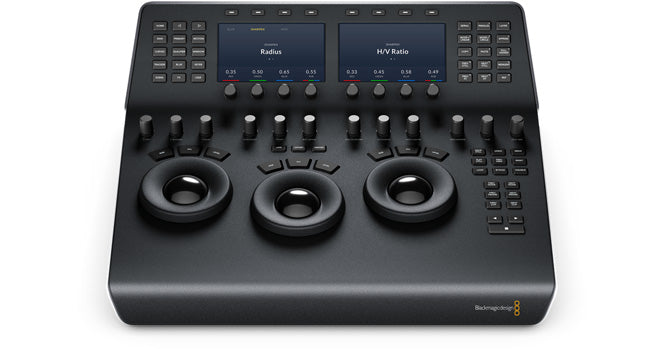

A compact professional hardware control panel featuring 3 high resolution weighted trackballs, 12 control knobs for essential tools and an upper deck with two 5” screens, DaVinci Resolve Mini Panel has 8 soft knobs and 8 soft buttons, and dedicated keys for switching tools, working with nodes, grabbing stills, navigating the timeline and more!

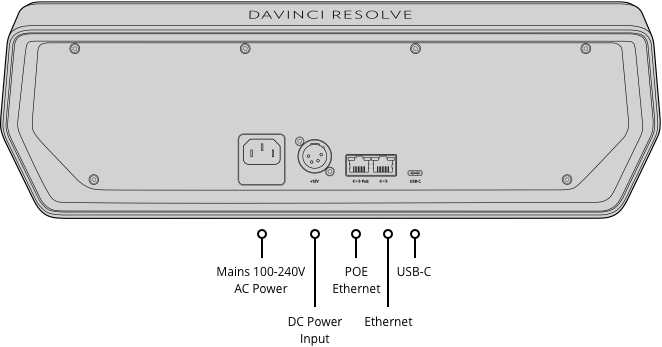

Connections

Computer Interface

USB Type‑C.

Ethernet

1 x Ethernet connection supporting 10/100/1000 BaseT with PoE.

1 x Ethernet connection supporting 10/100/1000 BaseT.

Power

1 x IEC C14 mains input.

1 x +12V DC 4‑pin XLR.

1 x Ethernet with PoE.



Power Requirements

Power Supply

Internal 100 - 240V AC 1.5A 50/60Hz with IEC C14 mains input.

Power Usage

17W max.



Operating Systems

Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.

Windows 10 Creators Update
Windows 11

Rocky Linux 8.6



Environmental Specifications

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing



What's Included

DaVinci Resolve Mini Panel

DaVinci Resolve Studio activation key



Warranty

1 Year Limited Manufacturer’s Warranty.
